صورة

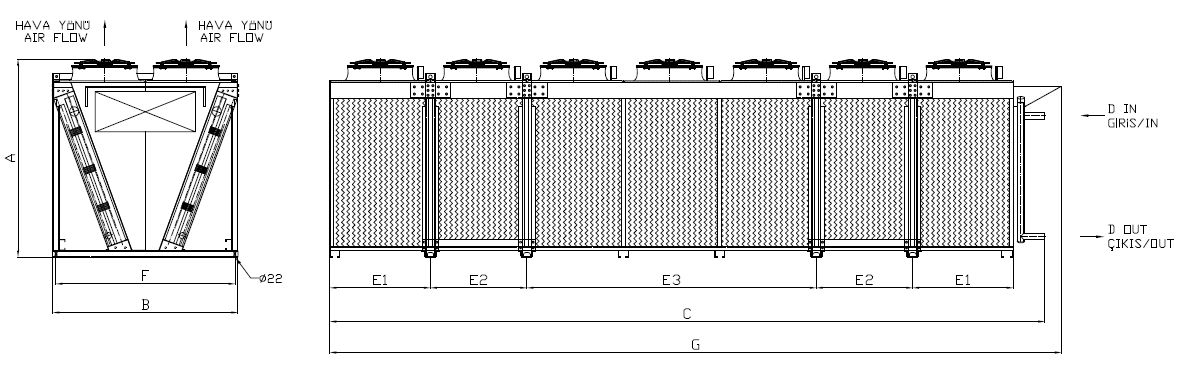

Dimension drawing — all measurements in mm
| Ref | البعد | القيمة |
|---|---|---|
| A | Sub-dimension A | 2453 mm |
| B | Sub-dimension B | 2300 mm |
| C | Sub-dimension C | 8850 mm |
| F | Sub-dimension F | 2230 mm |
| G | Sub-dimension G | 9100 mm |
| Length (overall) | 9100 mm | |
| Width / Depth | 2300 mm | |
| Height (overall) | 2453 mm | |
| Wt | الوزن | 3465,0 kg |
